[GUIDE] Finding the Mathematically Correct FOV & Multimon Settings For ANY Monitor Setup
-
- Posts: 133
- Joined: June 14th, 2021, 2:11 am
Re: [GUIDE] Finding the Mathematically Correct FOV & Multimon Settings For ANY Monitor Setup
Major Update: Combined almost all calculator functionality into new Hybrid Calculator, as well as added QOL features. No more figuring out which calculator to use and copy pasting values between sheets, everything is all in one place now.
New features include auto width/height from aspect ratio, easy LHD/RHD offset, better curve compensation, additional FOV info/adjustment, and console script output. See my dedicated calculator documentation post for more details.
The guide itself has also been updated. Since the Hybrid Calculator accommodates all setup types now, the usage instructions have been significantly simplified. I also added some multimon file templates, which may be more widely applicable for different users.
Last time, I said it was probably the last major update, but clearly I was wrong. This calculator also feels like a final version, but maybe I'll be wrong again. Anyways, please let me know if you have any issues.
New features include auto width/height from aspect ratio, easy LHD/RHD offset, better curve compensation, additional FOV info/adjustment, and console script output. See my dedicated calculator documentation post for more details.
The guide itself has also been updated. Since the Hybrid Calculator accommodates all setup types now, the usage instructions have been significantly simplified. I also added some multimon file templates, which may be more widely applicable for different users.
Last time, I said it was probably the last major update, but clearly I was wrong. This calculator also feels like a final version, but maybe I'll be wrong again. Anyways, please let me know if you have any issues.
-
- Posts: 7
- Joined: March 14th, 2023, 8:12 am
Re: [GUIDE] Finding the Mathematically Correct FOV & Multimon Settings For ANY Monitor Setup
Hi,
I would like to thank you for this calculator and guidelines. I manage to use it with my 3 monitors.
Now I'm trying to achieved the 4 monitor setup but with dashboard/wheel view. but having issues to make it work.
Here's my configuration;
1. Nvidia Control Panel
2. Config file
3. Multimon config
Here's what I got when I play the game.
As you can see, there are 4 sections in my 3 monitors. It looks like that my 4th monitor is not detected and the system added the 4th view to my 3rd monitor that's why it looks like stitched.
see below picture of my 4th monitor and disregard the actual positioning this is for testing only. It is not detected as 4th monitor by the game configuration.
BTW I'm using resize Racoon to play the game with 3 monitors without nvidia surround because it limits me with 60hz. Using resize tool i can play it smoothly. Here's the config if it will help as well for troubleshooting.
Hope you can help me to point out the issue and how to fix it.
thank you so much!
I would like to thank you for this calculator and guidelines. I manage to use it with my 3 monitors.
Now I'm trying to achieved the 4 monitor setup but with dashboard/wheel view. but having issues to make it work.
Here's my configuration;
1. Nvidia Control Panel
2. Config file
3. Multimon config
Code: Select all
SiiNunit
{
multimon_config : _nameless.Quad.View {
normalized_ui_x: 0.250000
normalized_ui_width: 0.250000
monitors: 4
monitors[0]: _nameless.monitor.1
monitors[1]: _nameless.monitor.2
monitors[2]: _nameless.monitor.3
monitors[3]: _nameless.monitor.4
}
monitor_config : _nameless.monitor.1 {
name: monitor1
normalized_x: 0.250000
normalized_y: 0.000000
normalized_width: 0.250000
normalized_height: 1.000000
horizontal_fov_relative_offset: 0.000000
vertical_fov_relative_offset: 0.000000
heading_offset: 0.000000
pitch_offset: 0.000000
roll_offset: 0.000000
camera_space_offset: (0.000000, 0.000000, 0.000000)
horizontal_fov_override: 42.611567
vertical_fov_override: 26.526657
frustum_subrect_x: 0.005495
frustum_subrect_y: 0.000000
frustum_subrect_width: 0.989011
frustum_subrect_height: 1.000000
render_interior: true
render_exterior: true
}
monitor_config : _nameless.monitor.2 {
name: monitor2
normalized_x: 0.000000
normalized_y: 0.000000
normalized_width: 0.250000
normalized_height: 1.000000
horizontal_fov_relative_offset: 0.000000
vertical_fov_relative_offset: 0.000000
heading_offset: 35.000000
pitch_offset: 0.000000
roll_offset: 0.000000
camera_space_offset: (0.000000, 0.000000, 0.000000)
horizontal_fov_override: 53.146251
vertical_fov_override: 25.473044
frustum_subrect_x: 0.000000
frustum_subrect_y: 0.000000
frustum_subrect_width: 0.739473
frustum_subrect_height: 1.000000
render_interior: true
render_exterior: true
}
monitor_config : _nameless.monitor.3 {
name: monitor3
normalized_x: 0.500000
normalized_y: 0.000000
normalized_width: 0.250000
normalized_height: 1.000000
horizontal_fov_relative_offset: 0.000000
vertical_fov_relative_offset: 0.000000
heading_offset: -35.000000
pitch_offset: 0.000000
roll_offset: 0.000000
camera_space_offset: (0.000000, 0.000000, 0.000000)
horizontal_fov_override: 53.146251
vertical_fov_override: 25.473044
frustum_subrect_x: 0.260527
frustum_subrect_y: 0.000000
frustum_subrect_width: 0.739473
frustum_subrect_height: 1.000000
render_interior: true
render_exterior: true
}
monitor_config : _nameless.monitor.4 {
name: monitor4
normalized_x: 0.750000
normalized_y: 0.000000
normalized_width: 0.250000
normalized_height: 1.000000
horizontal_fov_relative_offset: 0.000000
vertical_fov_relative_offset: 0.000000
heading_offset: 0.000000
pitch_offset: -30.000000
roll_offset: 0.000000
camera_space_offset: (0.000000, 0.000000, 0.000000)
horizontal_fov_override: 36.935312
vertical_fov_override: 38.168235
frustum_subrect_x: 0.000000
frustum_subrect_y: 0.377914
frustum_subrect_width: 1.000000
frustum_subrect_height: 0.579184
render_interior: true
render_exterior: true
}
}
As you can see, there are 4 sections in my 3 monitors. It looks like that my 4th monitor is not detected and the system added the 4th view to my 3rd monitor that's why it looks like stitched.
see below picture of my 4th monitor and disregard the actual positioning this is for testing only. It is not detected as 4th monitor by the game configuration.
BTW I'm using resize Racoon to play the game with 3 monitors without nvidia surround because it limits me with 60hz. Using resize tool i can play it smoothly. Here's the config if it will help as well for troubleshooting.
Hope you can help me to point out the issue and how to fix it.
thank you so much!
Re: [GUIDE] Finding the Mathematically Correct FOV & Multimon Settings For ANY Monitor Setup
@NewBeeTrucker - You are not using the multimon file you created.
From your config: uset r_multimon_mode "3" <-- change to 4
The step 2 quad file in the NPI topic has 3 screens and a dash view if you need to check anything.
EDIT
Also, your game resolution needs to be 4 times your monitors x resolutions
For example: 7680x1080
Then the 3 screens will be shown across 0 to 5760
And the dash screen 4 will be 5760 to 7680
From your config: uset r_multimon_mode "3" <-- change to 4
The step 2 quad file in the NPI topic has 3 screens and a dash view if you need to check anything.
EDIT
Also, your game resolution needs to be 4 times your monitors x resolutions
For example: 7680x1080
Then the 3 screens will be shown across 0 to 5760
And the dash screen 4 will be 5760 to 7680
multimon_config.sii files: viewtopic.php?p=17658#p17658
controls.sii edits: viewtopic.php?p=24744#p24744
TrackIR Driving Enhancements: viewtopic.php?p=46613#p46613
Extra Cameras: viewtopic.php?p=46034#p46034
controls.sii edits: viewtopic.php?p=24744#p24744
TrackIR Driving Enhancements: viewtopic.php?p=46613#p46613
Extra Cameras: viewtopic.php?p=46034#p46034
-
- Posts: 133
- Joined: June 14th, 2021, 2:11 am
Re: [GUIDE] Finding the Mathematically Correct FOV & Multimon Settings For ANY Monitor Setup
@NewBeeTrucker - As JHTrucker said, you should make sure multimon mode is set to 4. Additionally, to get the game to display on the fourth monitor, the game window must be resized to cover it; currently, at 5760x1080, the window is only covering the three main monitors.
It seems like the fourth monitor is a smaller resolution than the others, I will assume 1280x720. If you keep your current display arrangement, the window should be resized to 5760x1800. Make sure to use my Hybrid Calculator, you will need to adjust the "normalized" values in the multimon file. One problem though, is the UI will be in an awkward position, partially on your fourth monitor.
If you're okay with rearranging, I recommend you drag display 4 to the right, so all the monitors are in a line. Then, the game window should be resized to 7040x1080. Once again, use Hybrid Calculator to adjust the multimon values. The UI will have no problem in this configuration.
It seems like the fourth monitor is a smaller resolution than the others, I will assume 1280x720. If you keep your current display arrangement, the window should be resized to 5760x1800. Make sure to use my Hybrid Calculator, you will need to adjust the "normalized" values in the multimon file. One problem though, is the UI will be in an awkward position, partially on your fourth monitor.
If you're okay with rearranging, I recommend you drag display 4 to the right, so all the monitors are in a line. Then, the game window should be resized to 7040x1080. Once again, use Hybrid Calculator to adjust the multimon values. The UI will have no problem in this configuration.
-
- Posts: 7
- Joined: March 14th, 2023, 8:12 am
Re: [GUIDE] Finding the Mathematically Correct FOV & Multimon Settings For ANY Monitor Setup
@NewBeeTrucker - You are not using the multimon file you created.
From your config: uset r_multimon_mode "3" <-- change to 4 ---> Noted on this, actually I get the value of "3" from this link https://eurotrucksimulator2.com/multimon_config.php
The step 2 quad file in the NPI topic has 3 screens and a dash view if you need to check anything. ---> May I know the link for this topic to get the quad file you are referring to? thank you so much for these insights
EDIT
Also, your game resolution needs to be 4 times your monitors x resolutions
For example: 7680x1080
Then the 3 screens will be shown across 0 to 5760
And the dash screen 4 will be 5760 to 7680
1. Config file
uset r_multimon_mode "3"
2. My 4th monitor resolution is
So from 7040x1080 I edited my Resize Racoon and config to 7126x1080
Here's the output in-game
As you can see, on my 3rd right monitor there are some part of the screen that should be in my 4th monitor. And the separation of the screens are not align correctly.
BTW, I'm Still using the quad calculator on this test scenario, same multimon config from my previous post.
Also the reason why I still use uset r_multimon_mode "3" is because when I change it to "4" the view of the right windows does not appear and from the windshield the next view is changed to the dashboard view. Again this is for my testing scenario only just to make sure changing the resolution will make my 4th monitor detected and be able to output the game (and I achieved it)
However, for your suggestion to use the Hybrid calculator, I really don't know if I'm doing it correctly in putting the number to the cells. Maybe if you can give me sample calculations for this monitor setup I can have a reference which cells to input data and what data to input.
See my monitor details for your reference;
Left monitor 24 inches 1080p (54Width and 33 height including bezels) .3 for the right bezels
Center monitor 24 inches 1080p (54Width and 33 height including bezels) .3 for the left and right bezels
Right monitor 24 inches 1080p (54Width and 33 height including bezels) .3 for the left bezels
4th monitor 1366x768 (45Width and 27 height including bezels)
Here is my attempt to put these details to the Hybrid calculator
for the pixel computation in column P and Q I convert the values from cm to pixel https://www.unitconverters.net/typograp ... ixel-x.htm
Let me know if this is correct or I missed anything. Once you confirm that this are correct I will use it and change my uset r_multimon_mode "3" to 4
Thanks and really appreciate your effort guiding us to make it work.!
From your config: uset r_multimon_mode "3" <-- change to 4 ---> Noted on this, actually I get the value of "3" from this link https://eurotrucksimulator2.com/multimon_config.php
The step 2 quad file in the NPI topic has 3 screens and a dash view if you need to check anything. ---> May I know the link for this topic to get the quad file you are referring to? thank you so much for these insights
EDIT
Also, your game resolution needs to be 4 times your monitors x resolutions
For example: 7680x1080
Then the 3 screens will be shown across 0 to 5760
And the dash screen 4 will be 5760 to 7680
Actually I managed to somehow make it work using this test configurationa1337cookie wrote: ↑May 1st, 2024, 2:36 am@NewBeeTrucker - As JHTrucker said, you should make sure multimon mode is set to 4. Additionally, to get the game to display on the fourth monitor, the game window must be resized to cover it; currently, at 5760x1080, the window is only covering the three main monitors.
It seems like the fourth monitor is a smaller resolution than the others, I will assume 1280x720. If you keep your current display arrangement, the window should be resized to 5760x1800. Make sure to use my Hybrid Calculator, you will need to adjust the "normalized" values in the multimon file. One problem though, is the UI will be in an awkward position, partially on your fourth monitor.

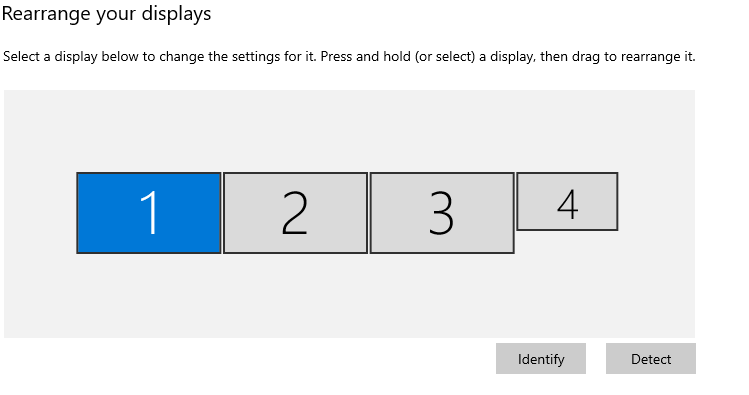

If you're okay with rearranging, I recommend you drag display 4 to the right, so all the monitors are in a line. Then, the game window should be resized to 7040x1080. Once again, use Hybrid Calculator to adjust the multimon values. The UI will have no problem in this configuration.
--->I already rearrange it as recommended see image below.
1. Config file
uset r_multimon_mode "3"
2. My 4th monitor resolution is
So from 7040x1080 I edited my Resize Racoon and config to 7126x1080
Here's the output in-game
As you can see, on my 3rd right monitor there are some part of the screen that should be in my 4th monitor. And the separation of the screens are not align correctly.
BTW, I'm Still using the quad calculator on this test scenario, same multimon config from my previous post.
Code: Select all
SiiNunit
{
multimon_config : _nameless.Quad.View {
normalized_ui_x: 0.250000
normalized_ui_width: 0.250000
monitors: 4
monitors[0]: _nameless.monitor.1
monitors[1]: _nameless.monitor.2
monitors[2]: _nameless.monitor.3
monitors[3]: _nameless.monitor.4
}
monitor_config : _nameless.monitor.1 {
name: monitor1
normalized_x: 0.250000
normalized_y: 0.000000
normalized_width: 0.250000
normalized_height: 1.000000
horizontal_fov_relative_offset: 0.000000
vertical_fov_relative_offset: 0.000000
heading_offset: 0.000000
pitch_offset: 0.000000
roll_offset: 0.000000
camera_space_offset: (0.000000, 0.000000, 0.000000)
horizontal_fov_override: 42.611567
vertical_fov_override: 26.526657
frustum_subrect_x: 0.005495
frustum_subrect_y: 0.000000
frustum_subrect_width: 0.989011
frustum_subrect_height: 1.000000
render_interior: true
render_exterior: true
}
monitor_config : _nameless.monitor.2 {
name: monitor2
normalized_x: 0.000000
normalized_y: 0.000000
normalized_width: 0.250000
normalized_height: 1.000000
horizontal_fov_relative_offset: 0.000000
vertical_fov_relative_offset: 0.000000
heading_offset: 35.000000
pitch_offset: 0.000000
roll_offset: 0.000000
camera_space_offset: (0.000000, 0.000000, 0.000000)
horizontal_fov_override: 53.146251
vertical_fov_override: 25.473044
frustum_subrect_x: 0.000000
frustum_subrect_y: 0.000000
frustum_subrect_width: 0.739473
frustum_subrect_height: 1.000000
render_interior: true
render_exterior: true
}
monitor_config : _nameless.monitor.3 {
name: monitor3
normalized_x: 0.500000
normalized_y: 0.000000
normalized_width: 0.250000
normalized_height: 1.000000
horizontal_fov_relative_offset: 0.000000
vertical_fov_relative_offset: 0.000000
heading_offset: -35.000000
pitch_offset: 0.000000
roll_offset: 0.000000
camera_space_offset: (0.000000, 0.000000, 0.000000)
horizontal_fov_override: 53.146251
vertical_fov_override: 25.473044
frustum_subrect_x: 0.260527
frustum_subrect_y: 0.000000
frustum_subrect_width: 0.739473
frustum_subrect_height: 1.000000
render_interior: true
render_exterior: true
}
monitor_config : _nameless.monitor.4 {
name: monitor4
normalized_x: 0.750000
normalized_y: 0.000000
normalized_width: 0.250000
normalized_height: 1.000000
horizontal_fov_relative_offset: 0.000000
vertical_fov_relative_offset: 0.000000
heading_offset: 0.000000
pitch_offset: -30.000000
roll_offset: 0.000000
camera_space_offset: (0.000000, 0.000000, 0.000000)
horizontal_fov_override: 36.935312
vertical_fov_override: 38.168235
frustum_subrect_x: 0.000000
frustum_subrect_y: 0.377914
frustum_subrect_width: 1.000000
frustum_subrect_height: 0.579184
render_interior: true
render_exterior: true
}
}
Also the reason why I still use uset r_multimon_mode "3" is because when I change it to "4" the view of the right windows does not appear and from the windshield the next view is changed to the dashboard view. Again this is for my testing scenario only just to make sure changing the resolution will make my 4th monitor detected and be able to output the game (and I achieved it)
However, for your suggestion to use the Hybrid calculator, I really don't know if I'm doing it correctly in putting the number to the cells. Maybe if you can give me sample calculations for this monitor setup I can have a reference which cells to input data and what data to input.
See my monitor details for your reference;
Left monitor 24 inches 1080p (54Width and 33 height including bezels) .3 for the right bezels
Center monitor 24 inches 1080p (54Width and 33 height including bezels) .3 for the left and right bezels
Right monitor 24 inches 1080p (54Width and 33 height including bezels) .3 for the left bezels
4th monitor 1366x768 (45Width and 27 height including bezels)
Here is my attempt to put these details to the Hybrid calculator
for the pixel computation in column P and Q I convert the values from cm to pixel https://www.unitconverters.net/typograp ... ixel-x.htm
Let me know if this is correct or I missed anything. Once you confirm that this are correct I will use it and change my uset r_multimon_mode "3" to 4
Thanks and really appreciate your effort guiding us to make it work.!
-
- Posts: 133
- Joined: June 14th, 2021, 2:11 am
Re: [GUIDE] Finding the Mathematically Correct FOV & Multimon Settings For ANY Monitor Setup
@NewBeeTrucker - When r_multimon_mode is set to 3, the preset shown in the documentation page is used. It is for 4 identical monitors configured in a line, but since your fourth monitor isn't the same size, it doesn't quite work, as you've found out. That's why we want a custom setup, where we can specify the size and position of each individual monitor. Setting r_multimon_mode to 4 tells the game to read from the multimon_config.sii file, which is how we make custom setups (using the calculator).
As for using the Hybrid Calculator, you should read through Step 3 from the main post, there are step by step instructions on how to enter everything in. To summarize:
You can tweak the monitor angles and bezel widths more, I just eyeballed it from the pictures of your setup. Here are the visualization diagrams.
Adjust the values until the top view and front view diagrams look close to your physical setup. The virtual screen space diagram should also match the arrangement in your display settings. Give it a try and let me know how it goes.
As for using the Hybrid Calculator, you should read through Step 3 from the main post, there are step by step instructions on how to enter everything in. To summarize:
- Screen width and height should be measured without bezels
- Pixel width and height is just your screen resolution (1920x1080 or 1366x768)
- Use the visualization diagrams to check your inputs
You can tweak the monitor angles and bezel widths more, I just eyeballed it from the pictures of your setup. Here are the visualization diagrams.
Adjust the values until the top view and front view diagrams look close to your physical setup. The virtual screen space diagram should also match the arrangement in your display settings. Give it a try and let me know how it goes.
-
- Posts: 7
- Joined: March 14th, 2023, 8:12 am
Re: [GUIDE] Finding the Mathematically Correct FOV & Multimon Settings For ANY Monitor Setup
It's working properly now! thank you so much! I just followed all of your instructions and guidelines and it works!a1337cookie wrote: ↑May 1st, 2024, 1:00 pm@NewBeeTrucker - When r_multimon_mode is set to 3, the preset shown in the documentation page is used. It is for 4 identical monitors configured in a line, but since your fourth monitor isn't the same size, it doesn't quite work, as you've found out. That's why we want a custom setup, where we can specify the size and position of each individual monitor. Setting r_multimon_mode to 4 tells the game to read from the multimon_config.sii file, which is how we make custom setups (using the calculator).
As for using the Hybrid Calculator, you should read through Step 3 from the main post, there are step by step instructions on how to enter everything in. To summarize:It should look something like this for your setup.
- Screen width and height should be measured without bezels
- Pixel width and height is just your screen resolution (1920x1080 or 1366x768)
- Use the visualization diagrams to check your inputs
You can tweak the monitor angles and bezel widths more, I just eyeballed it from the pictures of your setup. Here are the visualization diagrams.
Adjust the values until the top view and front view diagrams look close to your physical setup. The virtual screen space diagram should also match the arrangement in your display settings. Give it a try and let me know how it goes.
Disregard the color of my 4th monitor hahahaha I just wanna try it for future reference just in case I will transfer to a new location and will have this kind of setup.
You and your Calculator is a blessing to us! thank you brother!
I really don't know why SCS can't include this kind of configuration builtin to the game user interface like assetto corsa and other sim driving games. Just to be a user friendly. To be honest if you and other guys are not here helping us we will not be able to enjoy this multimonitor setup. NVIDIA surround is a not smooth and limited.
soon I will be upgrading to a bigger screen maybe triple 32 inches (not sure if flat or curve i think curve settings is more complex than flat monitors) and I will use this 4th monitor config to have a view of the rightside dashboard of the truck just to add more realism.
thanks again!
Re: [GUIDE] Finding the Mathematically Correct FOV & Multimon Settings For ANY Monitor Setup
I lost so much time fiddling around with the values myself, and then I found this thread and your calculator.
The calculator worked really well! Thanks so much for it!
Do you by any chance have a ko-fi page or something, I would be down to buy you a beer or two for your effort!
The calculator worked really well! Thanks so much for it!
Do you by any chance have a ko-fi page or something, I would be down to buy you a beer or two for your effort!
-
- Posts: 133
- Joined: June 14th, 2021, 2:11 am
Re: [GUIDE] Finding the Mathematically Correct FOV & Multimon Settings For ANY Monitor Setup
@sszaby23 - I'm flattered, I never expected anyone to want to donate just for an FOV calculator. I don't have a ko-fi or anything, but I really appreciate the offer and the kind words!
Re: [GUIDE] Finding the Mathematically Correct FOV & Multimon Settings For ANY Monitor Setup
Hello Truckers,
1st of all I have to say thx for that great tool, I tried it for some hours and cant get a correct allignment of my right Monitor. For me it looks like that the right Monitor is a lil bit to wide, I think it have to be a lil bit more narrow so that it doesnt look so wide. Or do you think that looks okay? Is it neccessary to set the multimon setting in the config.cfg to 2 after the file was generated by the game?
Have a nice wekkend ;)
https://i.postimg.cc/MKM8xGrW/IMG-3281.jpg
https://i.postimg.cc/xCTWZjzV/IMG-3283.jpg
1st of all I have to say thx for that great tool, I tried it for some hours and cant get a correct allignment of my right Monitor. For me it looks like that the right Monitor is a lil bit to wide, I think it have to be a lil bit more narrow so that it doesnt look so wide. Or do you think that looks okay? Is it neccessary to set the multimon setting in the config.cfg to 2 after the file was generated by the game?
Have a nice wekkend ;)
https://i.postimg.cc/MKM8xGrW/IMG-3281.jpg
https://i.postimg.cc/xCTWZjzV/IMG-3283.jpg
